Brief Introduction

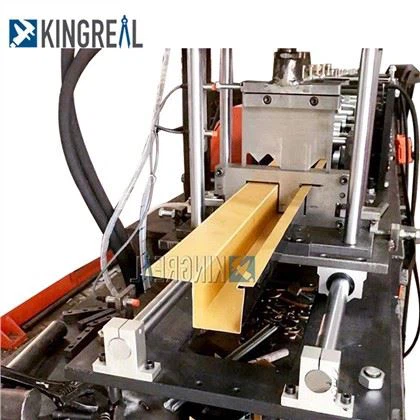

Garage Side Beam Cold-Formed Forming Equipment is mainly used for the

processing of side beam profiles used in the assembly of car discs in three-

dimensional garages. Because the side beams are thicker and have a little weight,

traditional processing is not only inconvenient, but also requires a circulation the

punching process.

After market research, KINGREAL combined with its rich experience in

manufacturing cold bending equipment for many years, has manufactured a fully

automatic edge beam cold bending production equipment that integrates punching

and forming. It is highly efficient and labor-saving, and the process is simple.

Many well-known domestic garage companies recognize and purchase and use!

Machine Features

1. The equipment's cold bending forming pass layout and equipment structure design are scientific and reasonable, and it has a wide range of adaptability to the softness and hardness of strip steel, and there will be no ripples and tears during the rolling process;

2. Through servo control, combined with high-speed hydraulic punching mechanism, using strip steel punching, and then continuous cold bending rolling, can punch and punch according to requirements, and ensure dimensional accuracy; and high productivity;

3. Reasonable layout, buffering device before and after punching, servo feeding punching, cold forming, hydraulic cutting without stopping, improving production efficiency;

4. Only one operator is required;

Technical Specification

Length of the production line	50 meters
production speed	adjustable from 0 to 4 meters/min
Frequency of CNC flushing cylinder	more than once per second
CNC	CNC punching motion CAD flexible control, computer programming, online input, processing, memory function
PLC	The host is controlled by PLC, and the color touch screen can directly input data to control the actions of the host
Adjustment	Through adjustment, it can meet different specifications of side beam profile rolling, realizing one machine with multiple functions
Maximum width	600mm
Rolling thickness	4 mm
Operator	1-2 Only for the whole production line
Roll passes	20 passes
Spindle diameter	ф100 mm
The minimum distance between the upper and lower shafts	200mm
Main motor power	18.5KW×2
The total power of the unit:	80.5KW (excluding gas source and electricity)
Others	power supply: AC380V air source pressure: 0.6MPa

Technical Structure

Side beam cold bending equipment process: feeding (manual)-sheet leveling-servo feeding CNC punching-cold bending forming-profile straightening-measuring hole to length-hydraulic automatic cutting-unloading (manual) → transfer Next process
